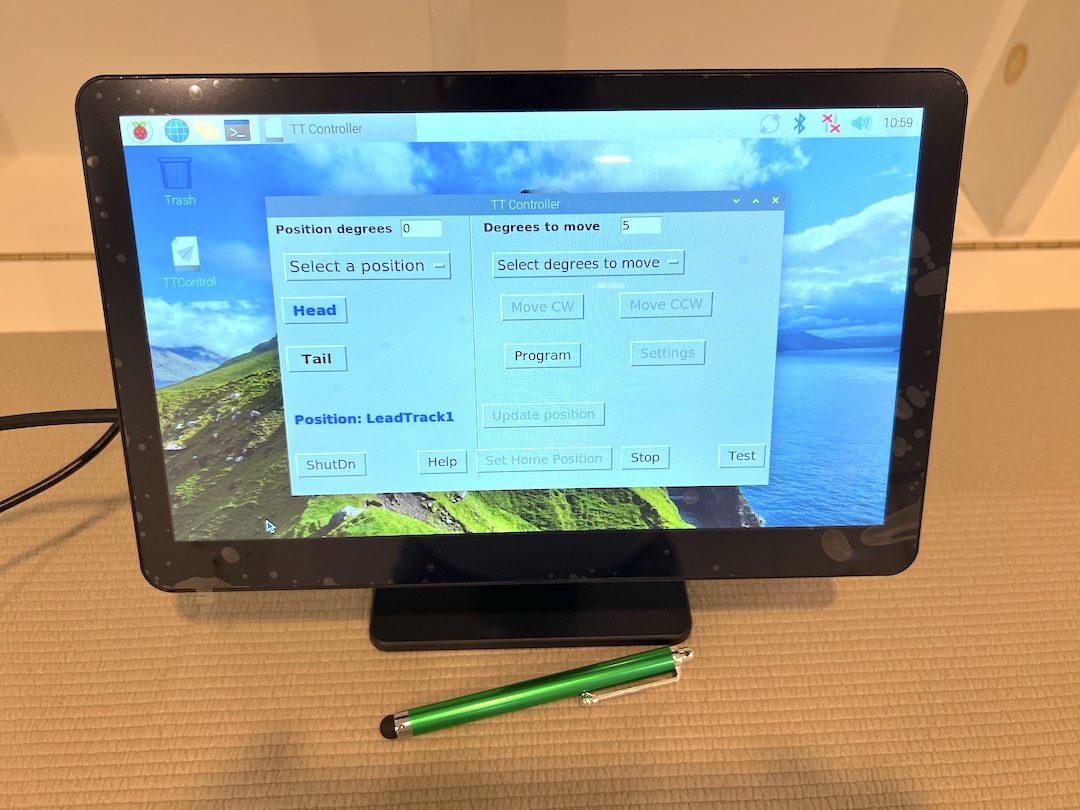

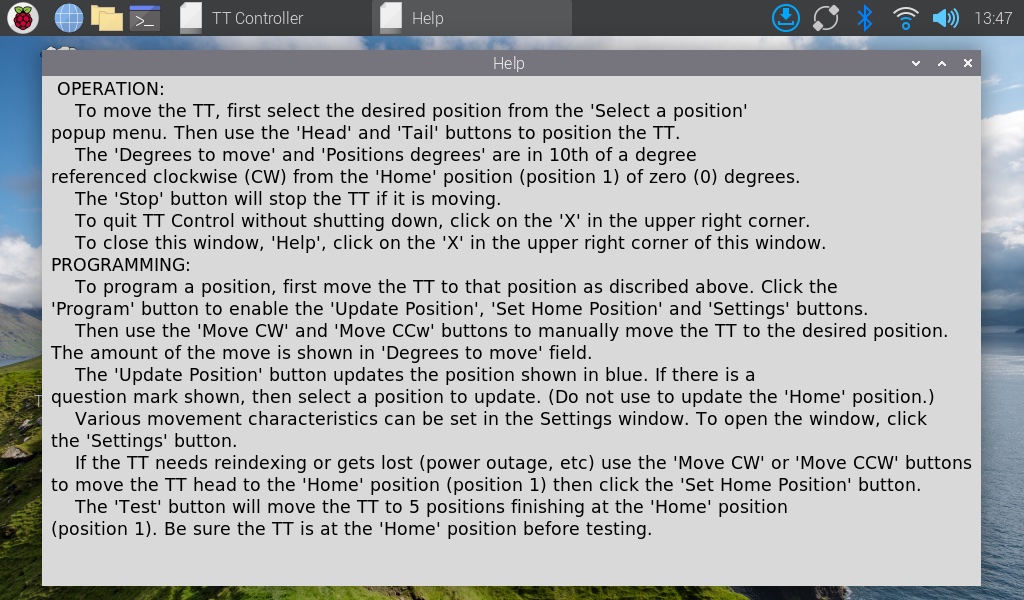

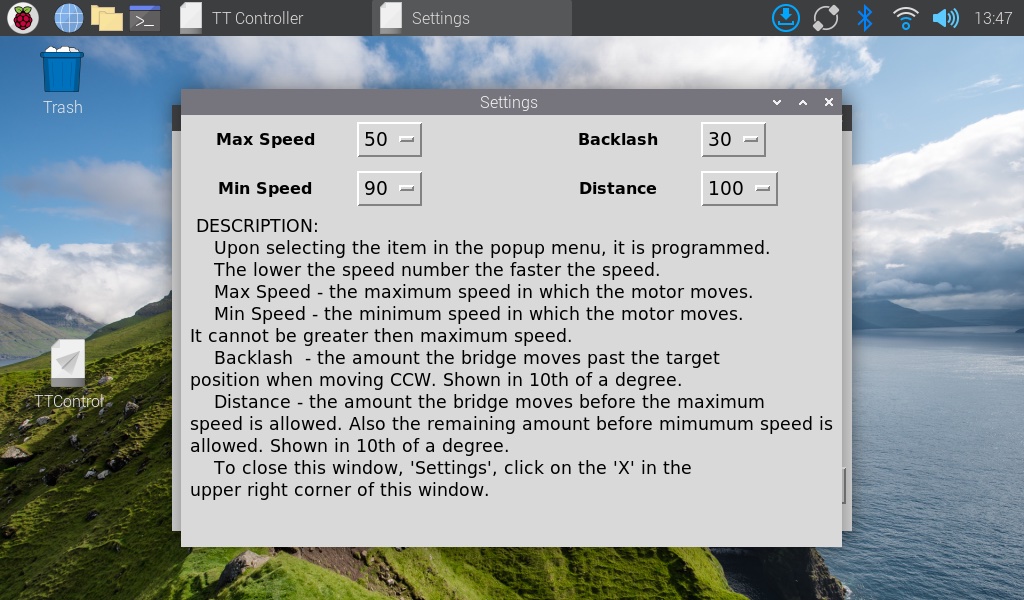

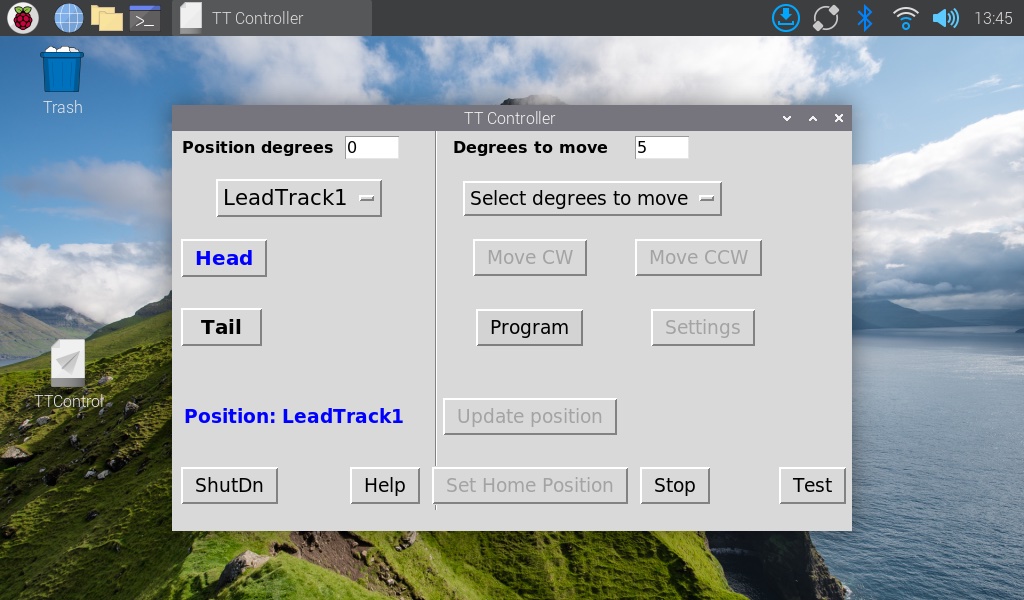

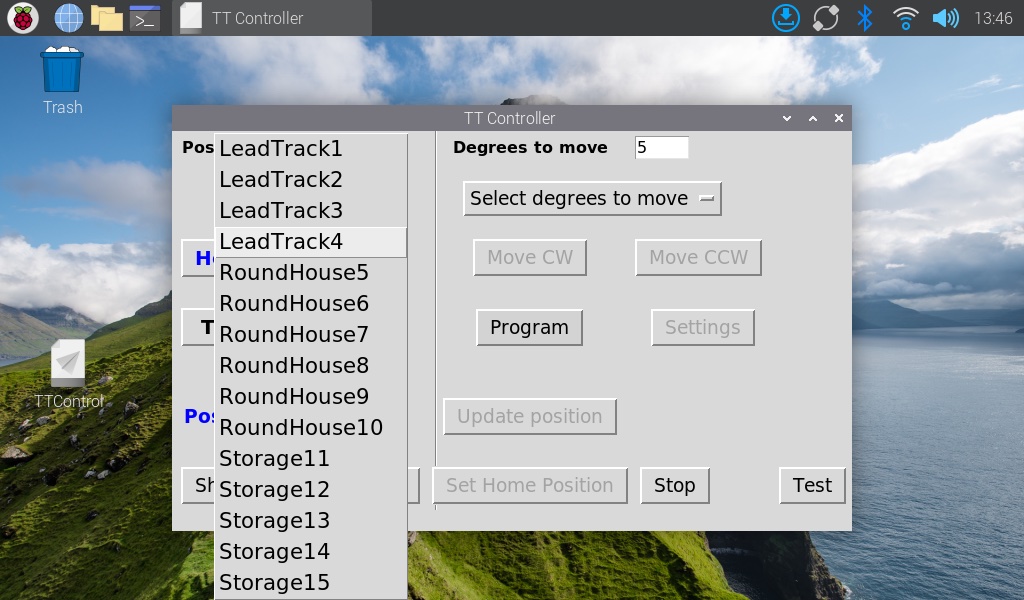

TT Controller window.Screen showing ‘Select a position’ popup menu.Screen showing the Help window.Screen showing the Settings window.The 10″ touch monitor. Shown on a stand but can be laid flat. Also 7″ touch monitor is available.Back of 10″ monitor showing HDMI and 5V+TOUCH cables connected.

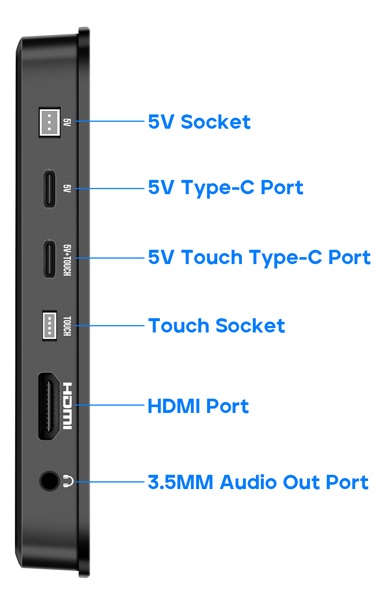

Touch screen connections.

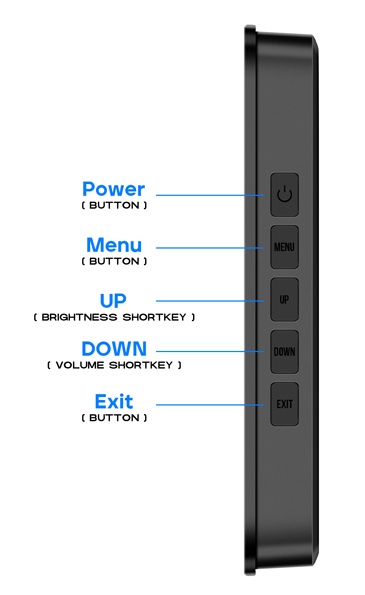

Touch screen controls.

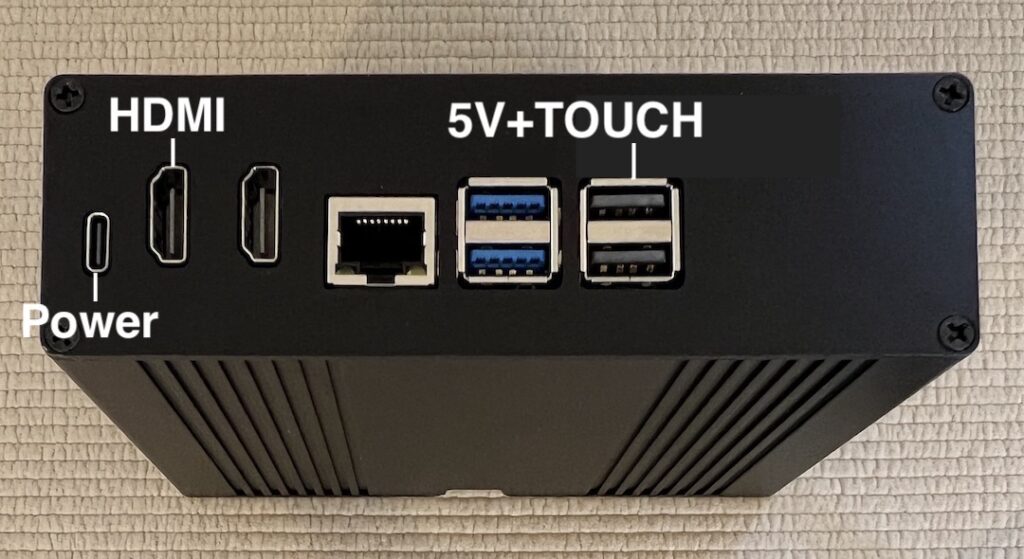

Control box showing motor and other connectors. The MicroSD Card holds the control software and can be replaced if required. If mounted vertically, the ventilation slots should be on top i.e. this side up.Control box showing power and other connectors.Control box front showing cables.

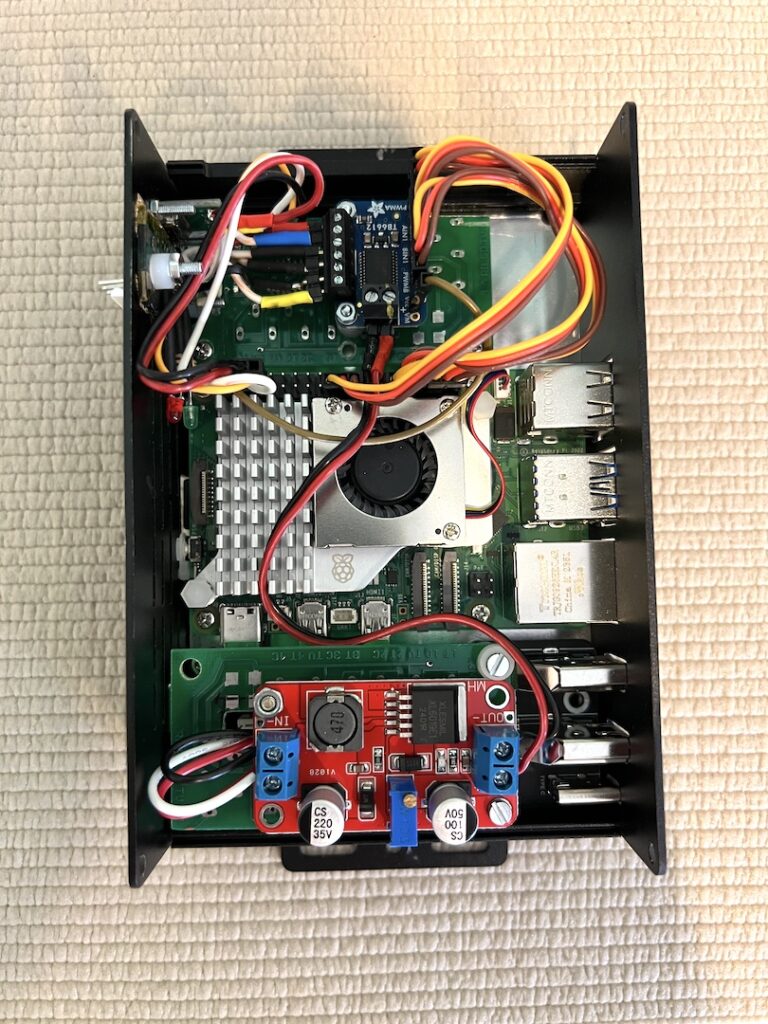

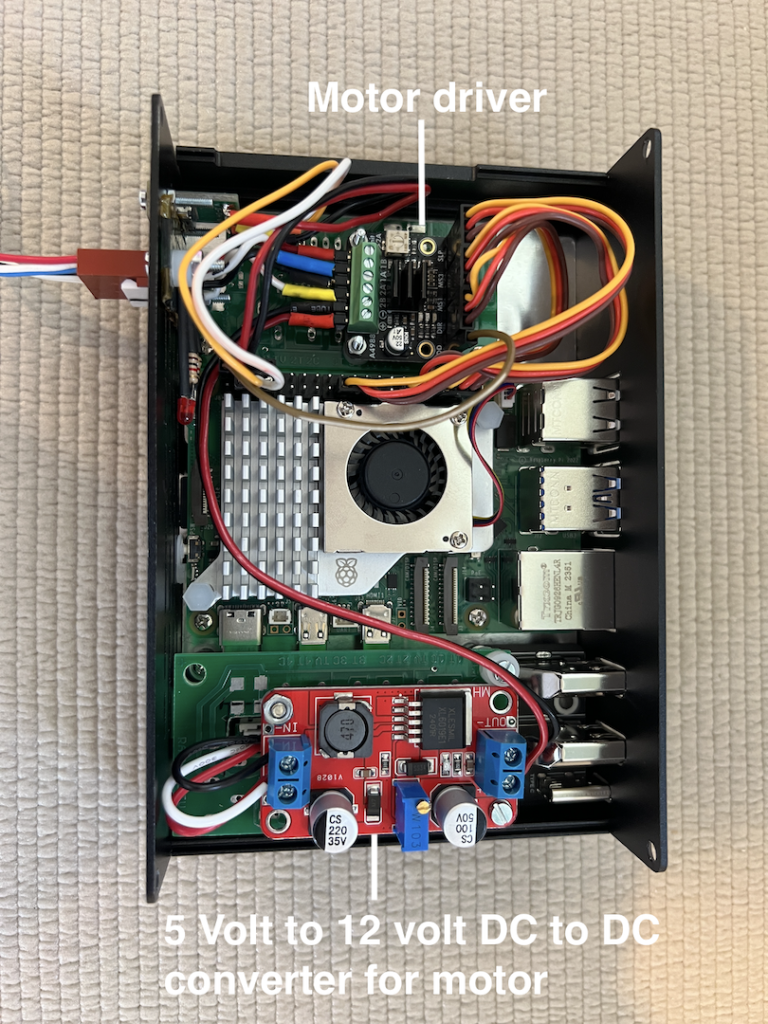

Inside controller. Motor driver is A4988.Inside controller. Motor driver is TB6612.

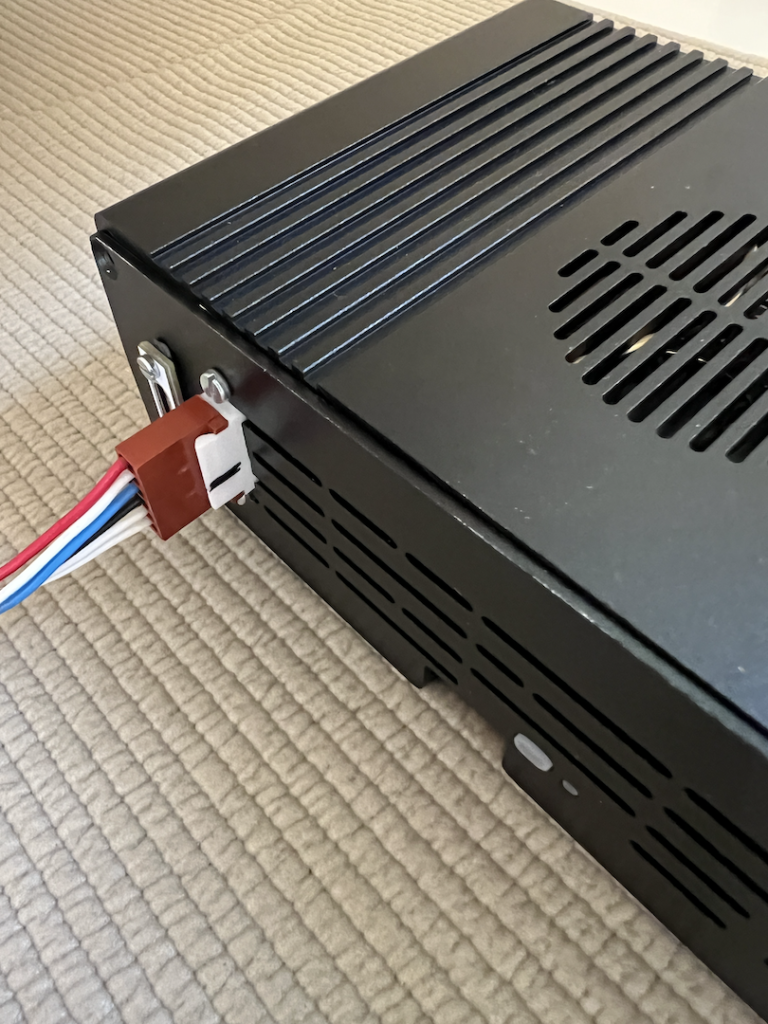

Motor connector.

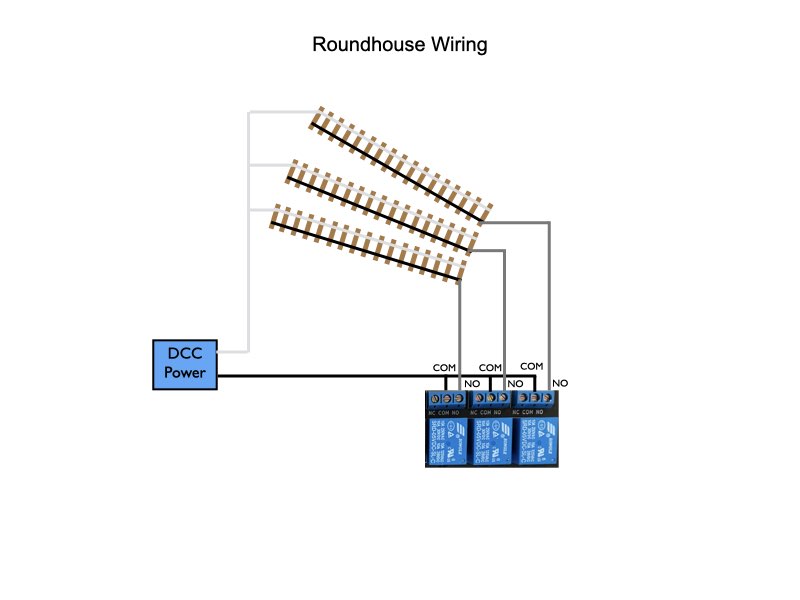

The really board is used to power the track that the bridge is alined with. It also reverses bridge track power.Bridge track wiring. When the head of the bridge is aligned with the main track should have the same polarity (represented by the same color in the picture).
